InfiniCORE® Flow Director Series - Network Fabric Visibility Appliances
Product Brief
Product Model
Infinicore® Flow Director series products provide a powerful toolset to help network administrators operate, monitor, and debug their networks with ease and efficiency. With Infinicore® Flow Director, administrators can map, tap, tag, replicate, and load balance traffic across any input and output ports. This enables cost-effective enhancement of network monitoring, security, and forensic capabilities—without introducing risks of service disruption.
Infinicore® Flow Director can also be integrated with the InfiniLoad® Traffic Simulator to create large-scale simulation clusters that efficiently achieve cloud-scale traffic generation. Additionally, it simplifies the sharing of test equipment across multiple teams and projects, making management and collaboration seamless.
Please use the following link to learn more about Infinicore Flow Director product line:
*: Models are not recommended for new deployment.

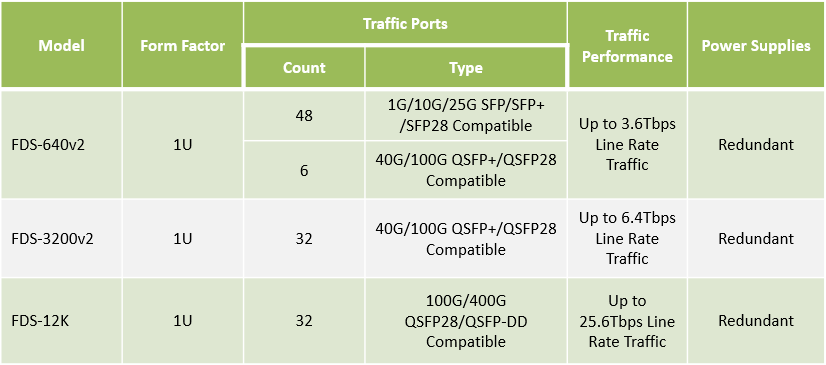

FlowDirector V2 Series Models
The FlowDirector V2 series is InfiniCORE®’s fourth-generation Network Packet Broker platform, engineered for advanced network visibility. Powered by Broadcom Trident 3 and Trident 5 ASICs, the V2 appliances offer high performance and scalability across three 1U rack-mountable models:

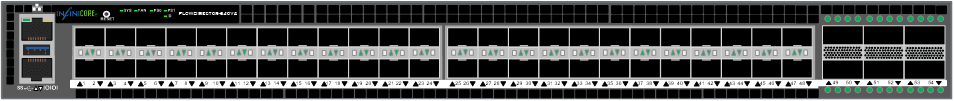

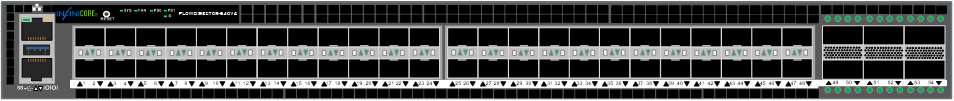

- FlowDirector-640v2: 48x 1G/10G/25G + 6x 40G/100G ports.

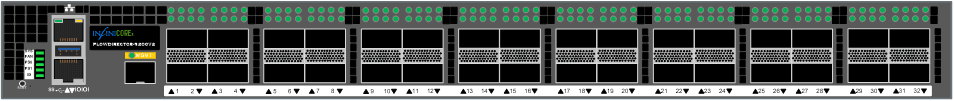

- FlowDirector-3200v2: 32x breakable 40G/100G ports.

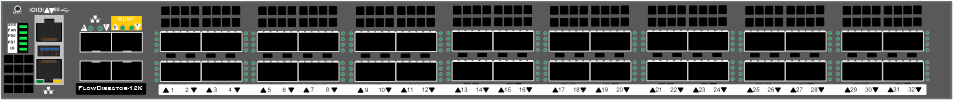

- FlowDirector-12K: 32x 400G ports, which can be breakable into 64x200GbE or 128x 100GbE ports for maximum throughput.
All models deliver line-rate packet processing with hardware acceleration.
At the core is the NextIO Visibility Operating System, featuring a unified web-based interface and the NextIO Visibility Studio, a diagram-based service creation tool for intuitive, drag-and-drop management of tagging, filtering, tapping, replication, aggregation, and load balancing services.
The V2 series supports high availability clustering and centralized management via NextIO Device Center.

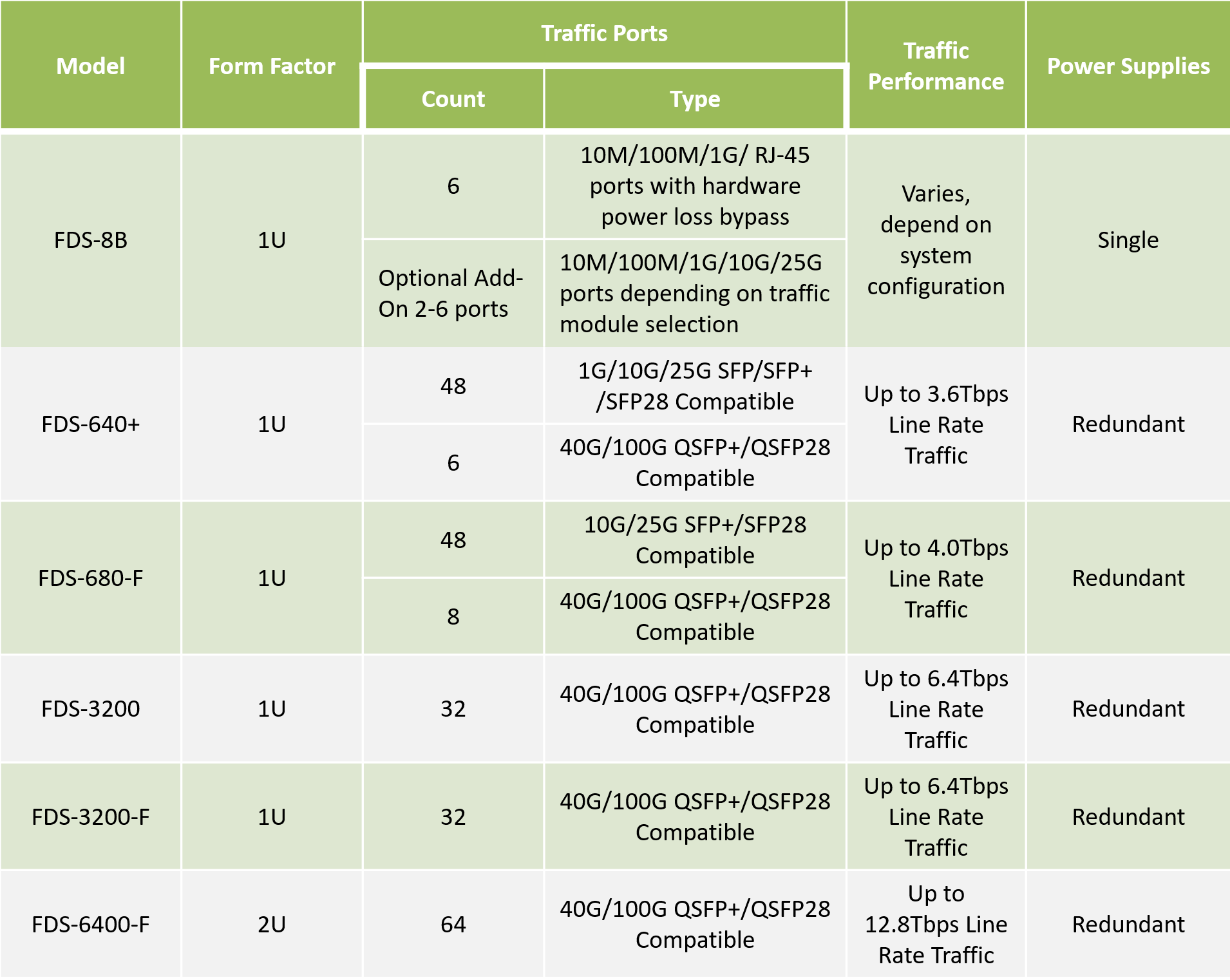

FlowDirector Legacy Models
Product Family Feature Highlights
RJ-45, SFP, SFP+, SFP28 and QSFP+, QSP28 Ports with Direct Attach Cables Support
Features
Each 10G interface supports 100M/1000M/10G speed modes; Each 25G interface supports 1G/10G/25G speed modes; Each 40G interface supports 40G speed mode; Each 100G interface supports 40G/100G speed modes; Advanced built in power saving feature; Robust EDC engine and Low Latency
Benefits
Interface seamlessly with your existing network; Provide a smooth migration path to your future network
Powerful Flow Management
Supports flow management mode such as Dynamic Virtual Wire; Inline Traffic Split and Merge; Traffic Aggregation; Traffic Replication; Fan out; Load Balancing; Switching and much more
The flow management allows you to select the most suitable data path that meets the demand without worrying about the configuration details.
High throughput and low latency
Empowered by the hardware architecture, Flow Director family is capable of deliver from 1800Gbps, 2000Gbps, 3200Gbps to 6400Gbps of line rate forwarding capabilities with low latency
Keep your network functioning at line rate with the added intelligence and flexibility
Easy to use Web GUI, CLI and Application Programming Interface
Support CLI and web GUI based device management. It also supports a wide variety of API bindings to ease the integration into your existing system
The device is easy to use and fully supports automation. Provide the opportunity for the 3rd parties to renovate and integrate.
Green and Cost Effective
Low power in full loaded state and provides unprecedented price performance
Reduce customers’ CAPEX and OPEX
